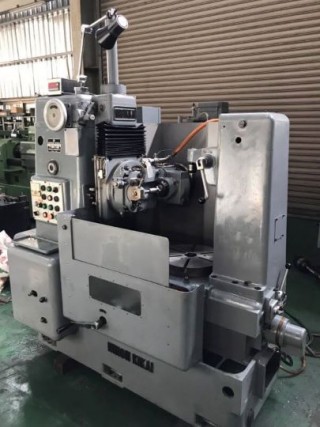

GEAR HOBBING MACHINE
Dimension :
Dimension
Max Dia 315、Max Module 8、TWO AUTO CYCLE、Auto hob shift、auto hydraulic support lift、hob spindle speed 100~400、main motor 7.5kw、machine weight 7600kg
GEAR HOBBING MACHINE
Dimension :
Dimension
Max dia 480φ(Without support)、Max dia 300φ(With support)、Table size 300、Max travel of cutter saddle 230、Max module 5、Max hobcutter dia 100×100、Cutter speed 80~320rpm、weight 2000kg
Production Gear hobbing machine
Dimension :
Dimension
MAX DIA300φ、MAX MODULE6、High production type、1. Hydraulic Auto 2 Cycle Cutting System、2. Auto Hob Shifting Device、3. Auto Hydraulic Support Lift、4.workpiece hydraulic clamping device
Production type auto gear hobbing machine
Dimension :
Dimension
Max dia 400、Max module6、Max hob size 155φ×155l、auto cycle cutting system、Max axial feed travel300、Auto shifting device hydraulic support lift main motor 10HP、machine weight 7200KG
Production type Auto Gear hobbing Machine
Dimension :
Dimension
Max dia300、Max module6、Max hob size 140φ×180l、Max axial feed travel 350、Auto cycle cutting system、Auto Shifting device、Hydraulic support lift、Main motor 10HP、Machine Weight 8000KG
Production type Auto Gear hobbing Machine
Dimension :
Dimension
Max dia 500、Max module6、Table dia 505、Table hole dia 120、max hob size 150φ×150L、max axial feed travel 370、center distance：hob to workpiece 50~350、hob speeds 100~400、main motor 10HP、machine weight 7000kg

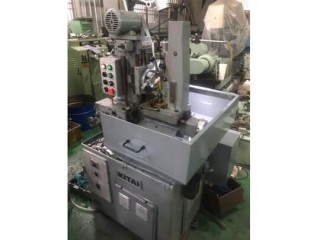

High-speed small gear hobbing Machine
Dimension :
Dimension
MAX DIA120φ、MAX MODULE2
High-speed small gear hobbing Machine
Dimension :
Dimension
MAX DIA120φ、MAX MODULE2
Automatic small gear hobbing machine
Dimension :
Dimension
MAXIMUM DIAMETER 120 、MAX MODULE 2、MAX 1870rpm、worm gear Auto cycle cutting type
HEAVY DUTY PRECISION HOBBING MACHINE
Dimension :
Dimension
Max dia 1800(without support)、1060(with support)、Max module 16、sliding distance of hob saddie 500、distance between centers of two arbors 110~1100、spindle rpm 20~80、hob size 230φ×280φ、table size 1060、bore of table 200、main motor 11kw、machine size 4175L×2025W×2590H、machine weith 16ton
5 Axis CNC Hobbing Machine (JAPAN KASHIFUJI)
Dimension :
Dimension
Max workpiece dia 150φ、Max pitch module4、Axial feed travel 400mm、max helix angle ±45°、Max hob shift travel 150、 center distance between hob&table 15~150mm、table top dia 190、hob spindle RPM 100~850rpm、FANUC 15M、machine weight 7000kg
5 Axis CNC Hobbing Machine (JAPAN KASHIFUJI)
Dimension :
Dimension
Max workpiece dia 150φ、Max pitch module4、Axial feed travel 400mm、max helix angle ±45°、Max hob shift travel 150、 center distance between hob&table 15~150mm、table top dia 190、hob spindle RPM 100~850rpm、FANUC 15M、machine weight 7000kg，Auto loader
5 Axis CNC Hobbing Machine (JAPAN KASHIFUJI)
Dimension :
Dimension
Max workpiece dia 150φ、Max pitch module4、Axial feed travel 400mm、max helix angle ±45°、Max hob shift travel 150、 center distance between hob&table 15~150mm、table top dia 190、hob spindle RPM 100~850rpm、FANUC 15M、machine weight 7000kg
Horizontal Precision gear hobbing machine
Dimension :
Dimension
Max diaφ60、Max cutting length 150、Max module 2、Max Hob spindle speed 1770 rpm、Auto Magazine Feed Attachment
Gear hobbing machine
Dimension :
Dimension
Maximum pitch module 2.5、Center distancce between workspindle and hob 8~94mm、Maximum blank diameter Manual loading 156、Maximum face width 180、Minimum number of teeth 3 、Workspindle adaptor bore dia 50mm 、Maximum hob diameter 70 、Shifting hob head 106、Shifting hob head 70、35 Longitudinal feeds 0.1~5.0mm/rev、10standard hob speeds 140~900rpm、Net weight approx 2900kg、Main motor power consumption 3.0kw

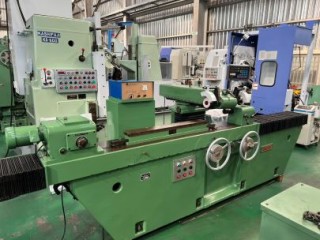

Broach sharpening mahicne
Dimension :
Dimension
Max grind ng outside diameter 150、Max broach length 1500、Max grind ing height 200、table size 2300×290、grindling wheel Z Axis：280、grinding wheel Y Axis：250、grinding wheel swivel angle L、R 30°、Grinding wheel swivel angle for vertical 90°、grinding wheer R.P.M 3600rpm、workpiece sprindle rpm 0、100、200、400 rpm2800kg
High-speed Small gear hobbing machine
Dimension :
Dimension
MAX DIA 160φ、MAX MODULE 2
Gear hobbing machine
Dimension :
Dimension
Max dia460φ(With out support)、Max dia380φ(With support)、Max module MP5、Max travel of cutter saddle 310、Dia of table 380φ、Max hod cutter dia 110、Cutter speed 8 changes、62~65rpm、Main motor 2.2KW(3HP)、Floor space 1930×1130×2075H、Machine weight 3000kg、Auto cycle type
5 Axis CNC Hobbing Machine (JAPAN KASHIFUJI)
Dimension :
Dimension
Max workpiece dia 150φ、Max pitch module4、Axial feed travel 400mm、max helix angle ±45°、Max hob shift travel 150、 center distance between hob&table 15~150mm、table top dia 190、hob spindle RPM 100~1330rpm、FANUC 18I MB
5 Axis CNC Hobbing Machine (JAPAN KASHIFUJI)
Dimension :
Dimension
Max workpiece dia 150φ、Max pitch module4、Axial feed travel 400mm、max helix angle ±45°、Max hob shift travel 150、 center distance between hob&table 15~150mm、table top dia 190、hob spindle RPM 100~1330rpm、FANUC 18I MB
