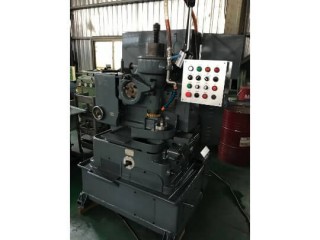

Gear shaping machine
Dimension :
Dimension
MAX DIAMETER 890φ、MAX PITCH 6

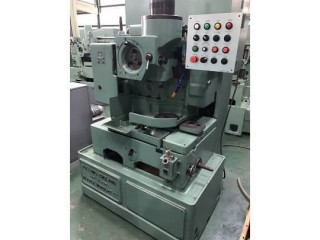

High Speed Gear shaping machine
Dimension :
Dimension
Max dia of workpiece 250、Max module 6、Max width(Ext)60、Max Width (lnt) 40、Cutter Spindle dia 85、Stroke/min 600rpm、Main Motor 2.2kw×6P、motor for Hydraulic Oil Tank 1.5kw、Net weight 3800kg、Floor Space 1200×1650
Gear shaping machine
Dimension :
Dimension
MAX DIAMETER 180φ、MAX PITCH 6
Gear shaping machine
Dimension :
Dimension
Max dia-evtermal spur gearφ180、Internal spur gear φ152、Max width 51、Max module4、Taper of cutter arbor MT5、cutter sprindle dia 85、Max cutter dia 100 Type、Distance between under surface of cutter、spindle nose and top surface of work table 95~155、work spindle bore 55、cutter strokes 225/300、340/450、500/600、weight 2500kg
Gear shaping machine
Dimension :
Dimension
MAX DIA 185φ、 MAX MODULE 6
Gear shaping machine
Dimension :
Dimension
MAX DIA 180φ、MAX MODULE 4
Gear shaping machine
Dimension :
Dimension
MAX DIA 340φ、MAX INTER DIA 540φ、MAX MODULE 5.5
Gear shaping machine
Dimension :
Dimension
Max Dia Spur 180、Max Dia Helical 165、Max Dia lnternal 139.7、Max face width external 38、Max face width internal 25.4、Max Module 6DP
Gear shaping machine
Dimension :
Dimension
Maximum pitch to be shaped module4、Maximum pitch circle diameter 180mm、Maximum face width 60mm、Range of strokes:236-630/min
Gear shaping machine
Dimension :
Dimension
Max dia185、Intemal 160、Max face width 50、Max module 6
Gear Shaper
Dimension :
Dimension
Max/min diameter of gear blank 450/20、Max gear facewidth 120、Max/min module 6/1、Max/min number of teeth 250/6、Workpiece weight Max：400kg、Table travel max 320、Max helix angle 60°、Max/min storke of cutter slide 145/0、Max/min position of cutter above table at stroke 320/139、Range of cutter strokes 37~235SPM、Machine weight 4500kg
Gear shaping machine
Dimension :
Dimension
MAX DIAMETER 180φ、MAX PITCH 6
Gear shaping machine
Dimension :
Dimension
MAX DIAMETER 180φ、MAX PITCH 6
