ANGULAR HYPOID TESTER
Dimension :
Dimension
MAX TEST WORK 3
ANGULAR HYPOID TESTER
Dimension :
Dimension
MAX TEST WORK 3
Gear rolling tester machine
Dimension :
Dimension
Magnification 100x200x500、Measuring range ±200u, ±125u, ±50u、Chart width 60mm、Contact pressure ≒ 1k、One graduation of the minimum testing chart 2u、Tested gear maximum diameter 200、Maximum center distance ≒ 200
CNC GEAR MEASURING INSTRUMENTS
Dimension :
Dimension
Testitem:spur/helical gear profile, lead,pitch Measurement module(0.5~12)、Base circle dia 300φ、Helix angle ±65°Gear width 400mm、gear length 10~520mm、permissible gear weight 150kg、Machine weight1200kg、power supply AC100V、50/60HZ、6A、Measuremen accuracy 0.1um、accessories：①stylus 1.5φ、②Test gear、③Work driver&fork、④Test bar、⑤Operation manual
CNC GEAR MEASURING INSTRUMENTS
Dimension :
Dimension
Measuring module (0.2) 0.5~2.0、Base Circle Dia 120φ、Helix angle ±65°(90° manual)、gear width 100mm MAX、gear length 0~260mm、permissible gear weight 20kg max、machine weight 600kg、measurement accuracy 0.1u
CNC DOUBLE FLANK GEAR ROLLING TESTER
Dimension :
Dimension
Spur gears with a hole or shaft、Module range 0.2~2.0、Center distance 25~130mm、Spindle steplessly variable、Measurement magnification ×100×200×…1000、2-axis NC Control axis、(Manufacturing NO.9005)、Tokyo technical Retrofit
CNC DOUBLE FLANK GEAR ROLLING TESTER
Dimension :
Dimension
Spur gears with a hole or shaft、Module range 0.2~2.0、Center distance 25~130mm、Spindle steplessly variable、Measurement magnification ×100×200×…1000、2-axis NC Control axis、(Manufacturing NO.9136)
Vertical CNC Hob Re-sharpening Machine
Dimension :
Dimension
Max. hob diameter：150mm、Min. hob diameter：10mm、Max. hob axial slide travel：300mm、Max. hob length：250mm、Grinding wheel daimeter：Ø190mm、Grinding wheel speed：4200rpm、Number of gashes：1/999、Max. module：M10、Sharpening hob type：HSS / TiN / Carbide、Total power consumption：4KVA、Voltage：3ψ / 220V ‧Length x Width x Height：L：1400mm/W：800mm/H：1800mm、Weight：1500kg
Automatic hob Sharpening machine
Dimension :
Dimension
MAX GRINDING DIA 40、MAX MODULE 2
Automatic hob Sharpening machine
Dimension :
Dimension
Max dia(with 70φ,Grinding wheel 100φ)、(with 100φ,Grinding wheel 70φ)、Max length 100mm、Grinding wheel dia 60~100、Stroke length 2~128mm、Stroke speed 0~4.2m/min、Standard divisions-2、3、4、5、6、10、12、15、20、30、60、、Grinding wheel speed 4000 and 6200、Weight of the machine 470kg、Main motor 1HP/220V
Automatic hob Sharpening machine
Dimension :
Dimension
Max hob dia φ200、max hob length250、max module M16、min lead of hob 1408、longitudinal travel of table 380、vertical travel of grinding head 130、distance between centers 550、Dia of index plate 120、Dia of grinding wheel 250、grinding spindle speed 2300RPM、machine weight 1200KG
HOB sharpener machine
Dimension :
Dimension
Maximum outside diameter of hobs with helical flutes 230mm(9.1/16")300mm、Maximum outside diameter of hobs with straight flutes 250mm(9.7/8") 300mm、Maximum depth of flute 50mm(2")、Minimum flute lead 125、Maximum lead angle 45°、Number of flutes 3 to 45、Maximum grinding slide stroke 475mm(18.3/4")、Minimum grinding wheel diameter 150mm(6")、Grinding wheel speed,infinitely variable,from 1500 to 2700 r.p.m、grinding slide feed rate,infinitely variable from 0 to 16 m/min、Distance between center 260~660mm 、 machine weight 4300KG、machine size 2000(L)×1600(W)×1700(H)
HOB sharpener machine
Dimension :
Dimension
MAX OUTSIDE OF HOB 160、MINIMUN ROOT DIA OF HOB 0 MAX FLUTE GRINDING DEPTH 35 MAX STROKE 340/265
HOB sharpener machine
Dimension :
Dimension
MAX OUTSIDE OF HOB 160、MINIMUN ROOT DIA OF HOB 0 MAX FLUTE GRINDING DEPTH 35 MAX STROKE 340/265
HOB SHARPENER MACHINE
Dimension :
Dimension
MAX DIA 100mm、MAX PITCH M8、MAX LENGTH 130
Hypoid cutter sharpener
Dimension :
Dimension
Capacity 4-1/4" to 9"、Stock removed per cycle(Cam-controlled feed)0.0038"、Type of Wheel 60 degree bevel、Size of wheel 7"×1" - 1-3/4" bore、4 seconds Times per blade
Horizontal broaching machine
Dimension :
Dimension
NOMINAL PULLING CAPACITY：31,400 LBS、PEAK PULLING CAPACITY：37,680 LBS、MAX RETURN SPEED.：120 RPM VARIABLE、DISTANCE BETWEEN WAYS：6"、MAIN MOTOR：10HP、WEIGHT (APPROX)：7500
Vertical broaching machines
Dimension :
Dimension
Pulling force10Ton、Max stroke 1400mm、Cutting speeds 60Hz 1~7.2M/min、Return speeds 60Hz 20M/min、Broach lifter stroke 440mm、Ram width 430mm、Bolster hole dia 127、Max outside dia of workpiece 380φ、Working table height 2200mm、Main motor 15KW/6P、Floor space 1700×2400mm、Weight 8Ton
CNC Soltting Machine
Dimension :
Dimension
Max stroke 230、table dia 430、front swivel angle of ram 10°、Gear ratio 1:90、Ram speed (spm)22、36、56、91、Vertical ram travel 320、Distanco between end of ram work table 450、Y axis 510、X 440、Feed rate of work table 0~2、Main drive motor 3HP、Feeding and dividing motor(soeppiing motor)81KG/CM、Net weight 2000KG

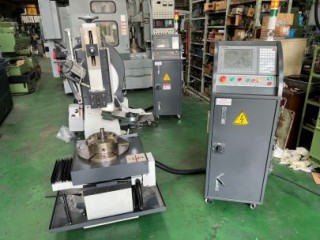

CNC-200 3 axis CNC Slotting
Dimension :
Dimension
Max travel of the ram (stroke)200、rertical ram travel 220、Ram speed (stroke) Low 31-37-43-55、Hight 64-74-88-112、Swivel angle of head ±30°、Distance between end of ram guideway and work table 300、Dia tabe 400φ、Longitudinal travel of working table (X axis )250、Cross travel of table 250、Main motor (brake motor)2HP (OP/RP)
