Radial drilling machine
Dimension :
Dimension
Drilling capacity steel 75、cast iron 90、Tapping capacity steel 60、cast iron 75、column dia 416、Max dist from column saface to spindle center 1620(Min 350)、max dist from spindle to base 1575(min 340)、Spindle dia 75/95、taper M.T5、Spindle travel 400、arm travel 850、spindle box travel 1330、weight 4300kg
Radial drilling machine
Dimension :
Dimension
drilling capacity steel 50、cast iron60、tapping capacity steel 45、cast iron 52、column dia 340、max dist from column surface to spindle center 1480 (min 265)、gear box travel 1215、max dist from spindle to base 1330、arm travel 660、spindle dia 60、taper mt5、spindle travel 300
Radial drilling machine
Dimension :
Dimension
Drilling solid steel 75、cast lron90、boring in steel 200、cast lron 280、spindle dia and quil 75/95、spindl vertical travel 400、morse taper NO.5、speed R.P.M 20~2180rpm、spindle feeds 0.04~2180rpm、spindle feeds 0.04~3.17(18 feeds)、column diameter 500、max distance column sruface to spindle center 2020(Min 410)、max distance base to spindle 3442、main motors 7.5kw、arm elevation motor 3.7KW
Bilateral 4-Spindle Auto Milling&Drilling Machine (brand new)
Dimension :
Dimension
Spindle speed cutting length 130×500、Y axis travel (longitudinal)365、Z axis center height 102、work table 300×350、weight load 420kg、feed cutting speed 1~6000 mm/min、motor cut 3HP×2PC drill 2HP×2PC、Hydraulic pump 2HP、Coolant 1/2HP、Machine weight 2050kg
Bilateral 4-Spindle Auto Milling&Drilling Machine (brand new)
Dimension :
Dimension
Spindle speed cutting length 130×500、Y axis travel (longitudinal)365、Z axis center height 102、work table 300×350、weight load 420kg、feed cutting speed 1~6000 mm/min、motor cut 3HP×2PC drill 2HP×2PC、Hydraulic pump 2HP、Coolant 1/2HP、Machine weight 2050kg
Bilateral 2-Spindle Auto Milling&Drilling Machine (brand new)
Dimension :
Dimension
X axis travel 100、Y axis travel 100、spindle Taper NT40、Spindle Speed 2000 rpm、table size 260×260、slide table surface to main spindle center 120、distance between two spindle ends 690mm
PLAYBACK NC SPINNING MACHINE
Dimension :
Dimension
Max blank dia 650、center height over bed 410、spindle dia 140、rpm 250~750(Variable)、X.Y axis：300×400、Spindle motor 15kw、hydraulic 11kw
PLAYBACK NC SPINNING MACHINE
Dimension :
Dimension
Max blank Dia 400、Depth of product 200、Center height over bed 350、Spindle speed 100~3000
PLAYBACK NC SPINNING MACHINE
Dimension :
Dimension
Max blank dia 650、center height over bed 410、spindle dia 140、rpm 250~750(Variable)、X.Y axis：300×400、Spindle motor 15kw、hydraulic 11kw
PLAYBACK NC SPINNING MACHINE
Dimension :
Dimension
Max blank Dia 400、Depth of product 200、Center height over bed 350、Spindle speed 100~3000
Polygon machine
Dimension :
Dimension
Max dia40φ、Max Working Length80、Chuck Spindle 300~375rpm、Cutter Spindle 600~750rpm
Polygon machine
Dimension :
Dimension
Max dia40φ、Max Working Length80、Chuck Spindle 300~375rpm、Cutter Spindle 600~750rpm
NC-Tester edm-dim-sinkking edm
Dimension :
Dimension
Table size 400×300、XYZ：200×150×300、CNC Syster hust-cnc H4-3、Table~spindle face 380

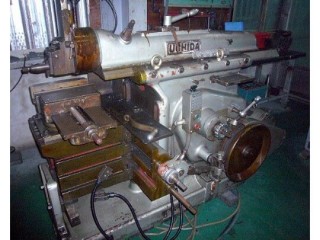

Crank Shaper machine
Dimension :
Dimension
MAX stroke 550

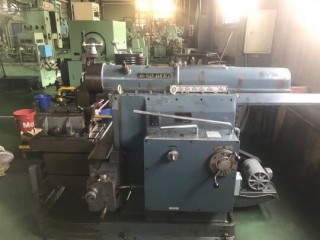

Crank Shaper machine
Dimension :
Dimension
MAX Stroke 720
Balancing machine
Dimension :
Dimension
MAX weight 30-3000KG、MAX dia over machine bed 2000m/m、MAX distance 2700
