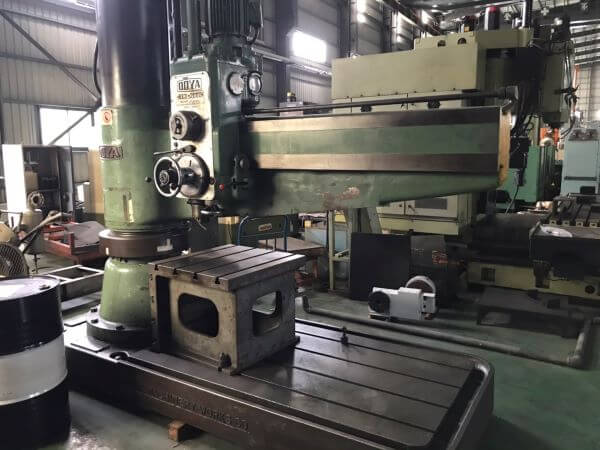

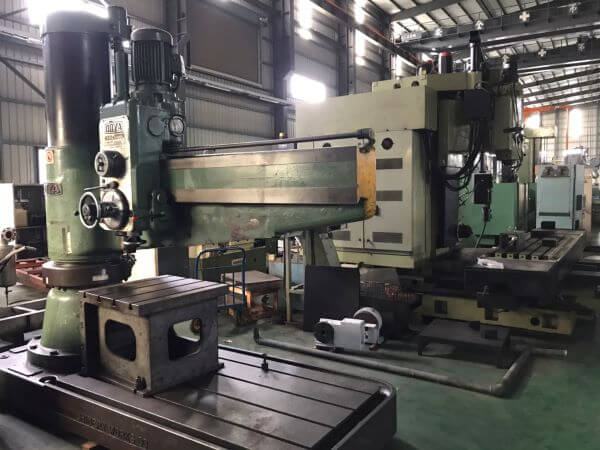

Radial drilling machine

Drilling solid steel 75、cast lron90、boring in steel 200、cast lron 280、spindle dia and quil 75/95、spindl vertical travel 400、morse taper NO.5、speed R.P.M 20~2180rpm、spindle feeds 0.04~2180rpm、spindle feeds 0.04~3.17(18 feeds)、column diameter 500、max distance column sruface to spindle center 2020(Min 410)、max distance base to spindle 3442、main motors 7.5kw、arm elevation motor 3.7KW
